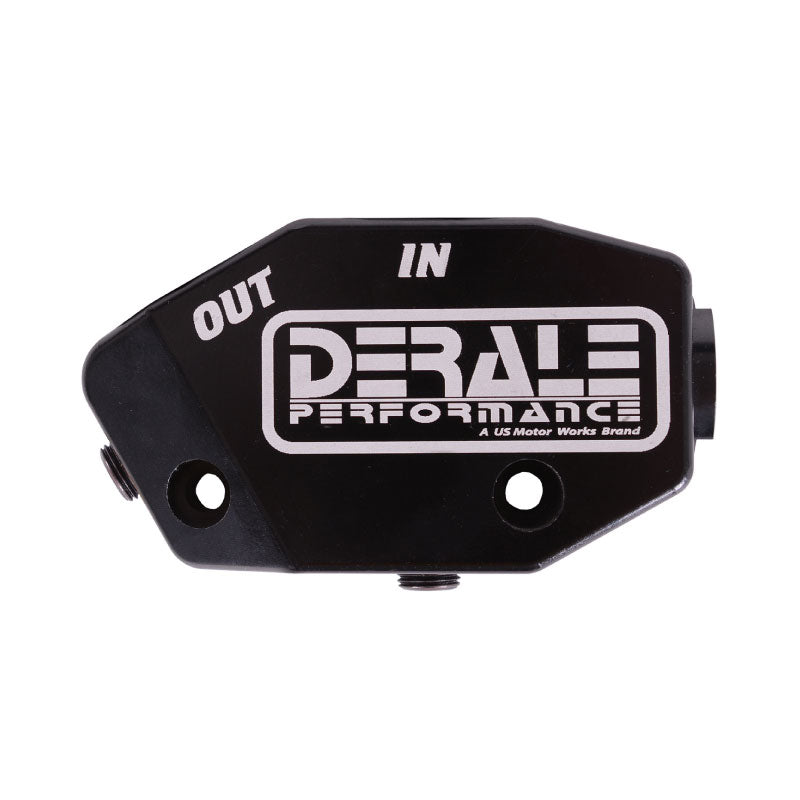

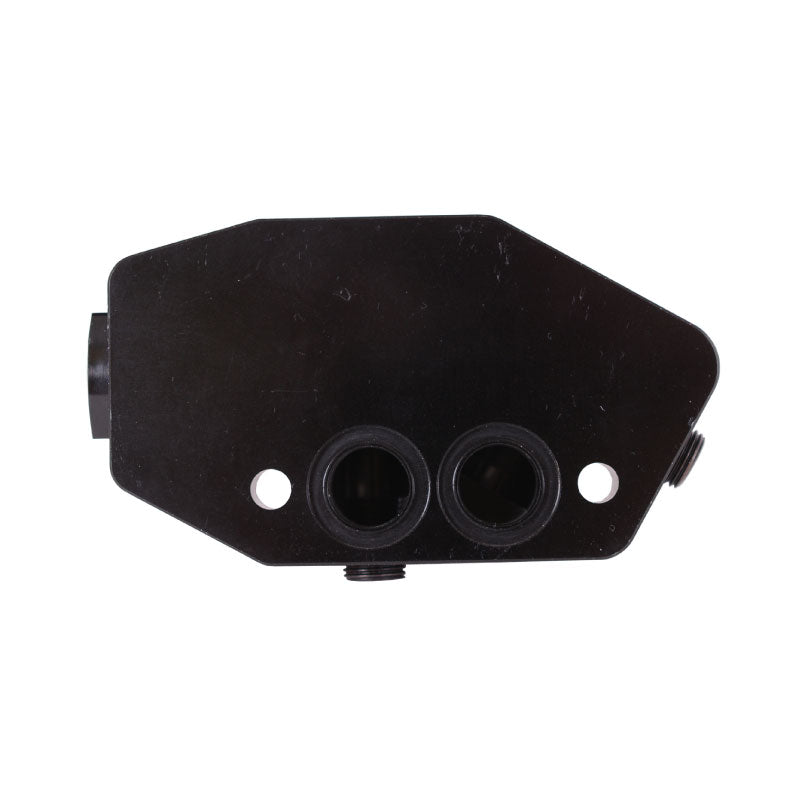

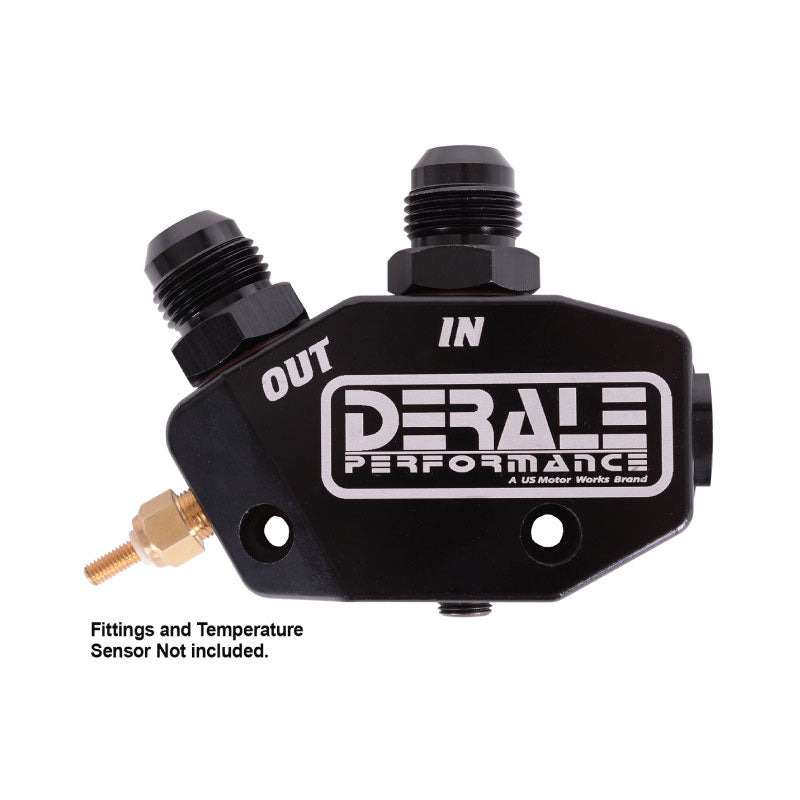

Derale LS Engine Oil Cooler Bypass Adaptor Kit 35621

This Billet Aluminum LS Engine Adapter features a built in 180°F Thermostat to help reduce engine wear and horse power loss. The oil thermostat allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine to achieve the ideal operating temperature quicker before passing the oil through the cooler.

Specifications

• Activating temperature: 180°F
• Ultra low profile design
• Clears most long tube headers for LS swaps
• 6061 Aluminum Billet
• Viton o-rings
• 1/8" NPT Ports

Features

• Bypasses cooler until fluid temperature reaches 180°F
• Provides quicker warm-up temperatures
• Perfect for cold weather climates
• Flows up to 20 gallons per minute
• Rated up to 200 psi
• Black anodized finish
• -10AN ORB inlet/outlet ports for maximum flow
