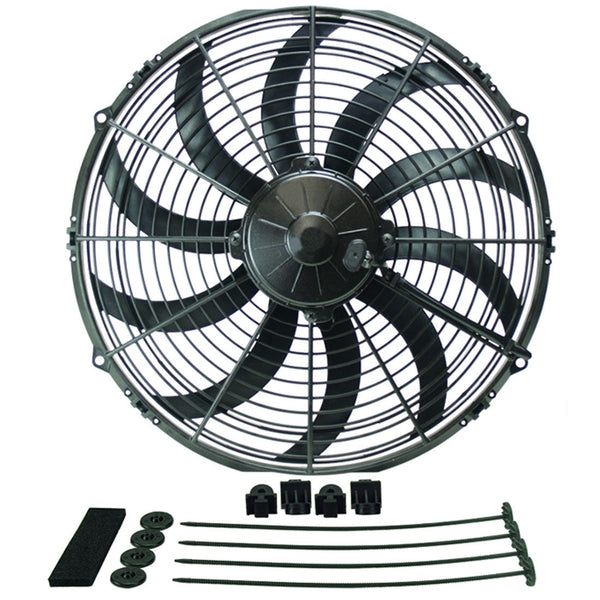

Derale 14" High Output Curved Blade IP68 Electric Puller Fan - DER-16114

A 14" Diameter version of Derale's high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 3 7/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.

Features:

• Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
• 10 thin curved blades allow ultra low profile design for limited space applications
• Designed for maximum performance at high static pressure loads for more effective cooling.
• Long lasting, sealed IP68 certified waterproof & dustproof motor
• 1864 CFM
• Amp draw: 21.5 amps
• Includes mounting kit and illustrated installation instructions
• Puller only (engine side)

Specifications:

• CFM fan: 1864
• Amp draw: 21.5
• Width: 14-7/16"
• Height: 15-1/16"
• Depth: 1-1/8"
• Overall Depth: 3-7/16"
• Mounting: 13-1/16" x 7-9/16"
