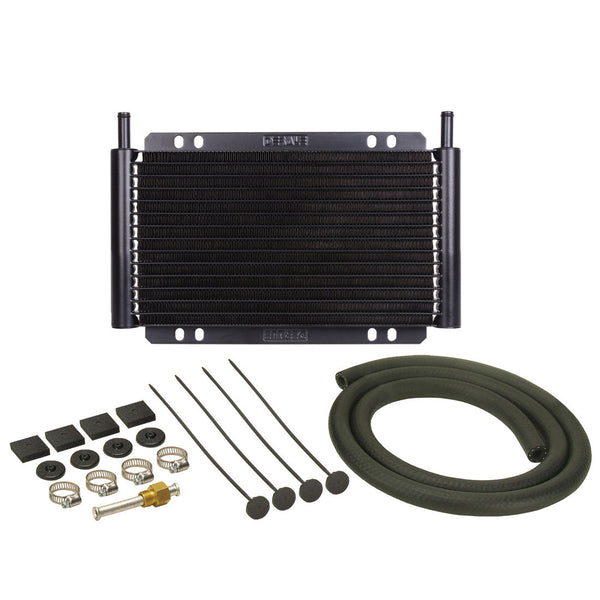

Derale 13 Row Series 8000 Plate And FIn Transmission Cooler Kit - DER-13502

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Specifications:

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 11/32" barb
• BTU: 13500
• GVW: 18000
• Width: 11"
• Height: 7-1/4"
• Depth: 7/8"
• Inlet dim: 10-1/4"
• Mounting: 6-3/4" x 6-1/8"
• Hose size: 11/32"
• Hose length: 4'
• 4oz. Additional Fluid Capacity

Features:

• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Improves transmission performance
• Sturdy furnace-brazed aluminum construction
• All Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 13 row cooler design
• 3/4" embossed turbulators maximize cooling & minimize pressure drop
• 11/32" hose barb inlets
• BTU: 13500
• GVW: 18000
• Complete hardware kit included
• Fluid Capacity: 4 oz.
