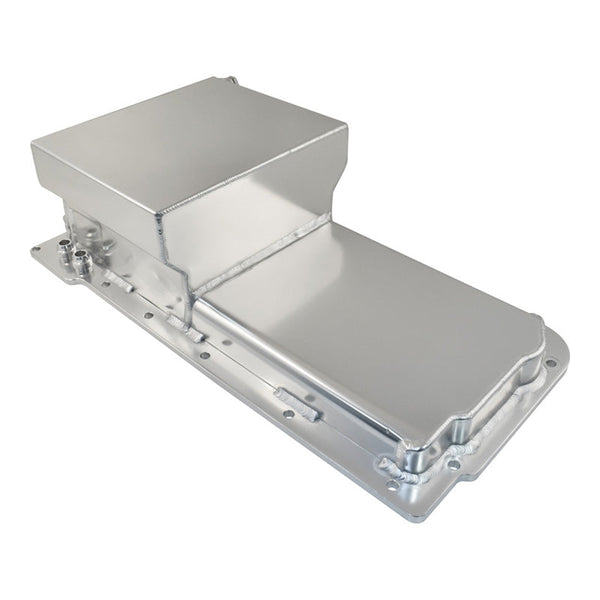

Fabricated Aluminium LS1 LS2 LS3 LS6 LSX Oil Pan Rear Sump

Calflow's fabricated aluminium LS oil pan is just what you need if you have crossmember interference issues on an engine swap. It comes with an anti-slosh gate to keep oil at the oil pick-up even in the most extreme conditions and has large AN-10 fittings for easy hook-up.

• Suits LS1 LS2 LS3 LS6 (Will not fit LS7 or LS9 dry sump applications)
• Fabricated aluminium
• Tig welded
• Billet rail
• Silver finish
• Rear sump
• Sump depth: 6"
• Stroke clearance: 4-1/8"
• Oil filter location: remote
• Oil capacity: 7 quarts (6.6L)
• Baffled
• Includes bolts

Note: oil pickup and gasket not included.
