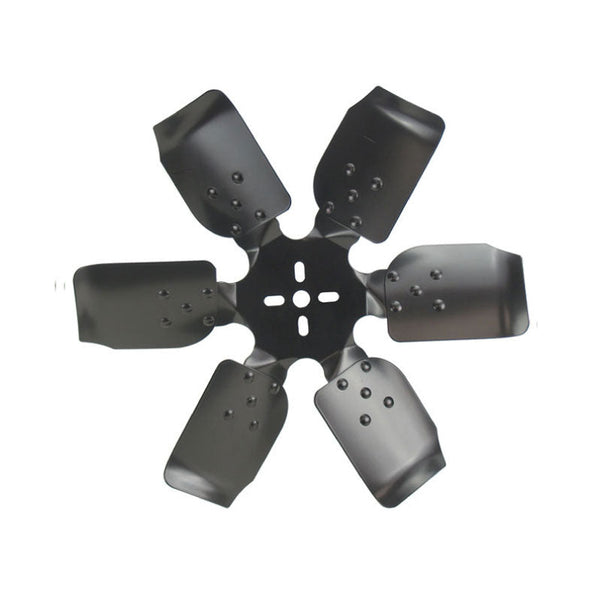

Derale 17" Rigid Race Fan Steel Blades Standard Rotation Steel Hub 17317

This fan provides more airflow than factory fans throughout the entire RPM range and it is rated up to 8000 RPM making it an excellent low cost alternative to clutch fan systems.

This standard rotation fan features a strong steel hub, 6 steel fan blades, and is finished in durable black powder coat.

Designed to meet most racing regulations, Derale Rigid Race Fans are the perfect choice for your high performance engine.

Specifications

• Diameter: 17”
• Flange bolt spacing: 1-3/4” – 2-1/4”
• Depth: 2-5/16”
• Mounting surface to front: 1-9/16”
• Mounting surface to rear: 3/4”
• Blade pitch: 28 degrees
• Blade width: 4"
• Rotation: Standard (clockwise)
• Construction: Powder coated black steel
• Also available in 15”

Features

• Steel fan blades
• Maximum full time airflow
• Durable stainless steel blades
• Rated up to 8,000 RPM
• Embossed centre hub and five rivet per blade attachment
• 17” standard rotation rigid fan design

If necessary, a fan spacer can be used to move fan closer to radiator.  Available separately in ½”, 1”, 1-1/2” and 2”.
