Derale High Output Single 14" Electric Rad Fan/Aluminium Shroud Kit 16817

This High Output Single RAD Fan is part of the HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 17" wide by 16 3/8" top to bottom and only 2 3/4" thick to offer an adjustable yet precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 14" high output two speed fan is one of the best in our line-up offering 2100 CFM when on high to create the most airflow possible in a compact size.

Specifications

• CFM high/low: 2100/1500
• Amp draw high/low: 22/16.2
• Width:17"
• Height: 16-3/8"
• Shroud Depth: 1 1/8"
• Overall depth: 2 3/4"
• Mounting Hole(s) center to outside edge: 1/2"
• Mounting: Adjustable

Features

• Designed for primary cooling
• Raw aluminum shroud construction can be polished, painted or anodized
• High Output 265 watt 2-speed motor
• 2100 CFM
• Ultra-quiet patented skewed blade design
• Puller (engine side) applications only

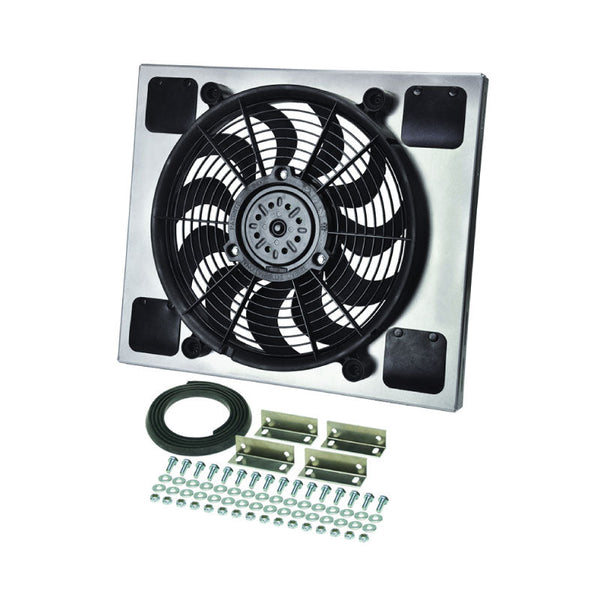

• Kit includes adjustable mounting brackets and complete mounting hardware
